Dewatering Systems
PSI Dewatering Systems are designed to reclaim water or oil from drilling fluid waste. They separate water from suspended solids through chemical and/or mechanical means and then recirculate it, cutting out the wasted time and expense of bringing clean water onsite and of disposing of the now reduced amount of solid waste.
Designed for construction dewatering, mining pit management, and oilfield drilling fluid reclamation for a construction site or a fully containerized unit for long-term oilfield use.
FEATURES
- Customized to your application

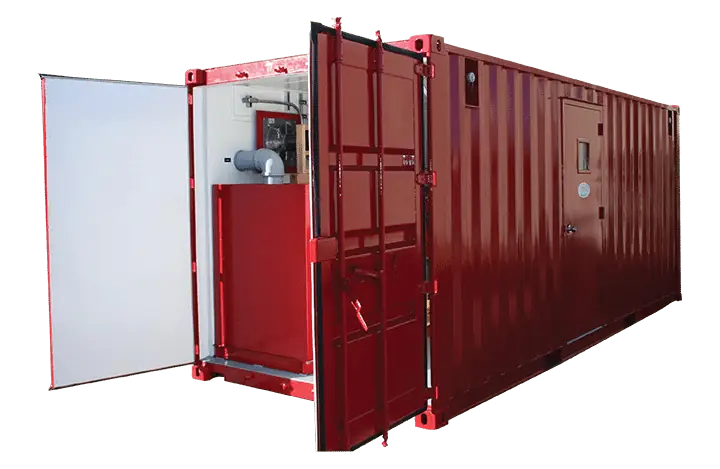

- Containerized or open air unit
- Air conditioning and heating
- Environmentally safe
Construction Dewatering Pumps & Systems
Construction dewatering is one of the most critical phases of any ground-up project. Excavations, tunneling, and below-grade foundation work all generate groundwater accumulation that must be managed before structural work can proceed safely.
Why Construction Sites need Dewatering Equipment
Construction dewatering is one of the most critical phases of any ground-up project. Excavations, tunneling, and below-grade foundation work all generate groundwater accumulation that must be managed before structural work can proceed safely.
Standard submersible pumps struggle with the solids content typical of construction site water — sediment-laden groundwater, slurry runoff, and mixed fluid from drilling operations. PSI’s industrial dewatering systems handle suspended solids through chemical and mechanical treatment, preventing pump clogging and processing water at high capacity throughout active construction phases.
How Dewatering Systems Work
PSI dewatering systems use chemical and mechanical separation to reclaim water or oil from drilling fluid waste. Suspended solids are separated from the liquid stream and processed, allowing the reclaimed water to be recirculated back into operations — eliminating the cost of trucking in clean water and significantly reducing the volume of solid waste requiring disposal.
Application

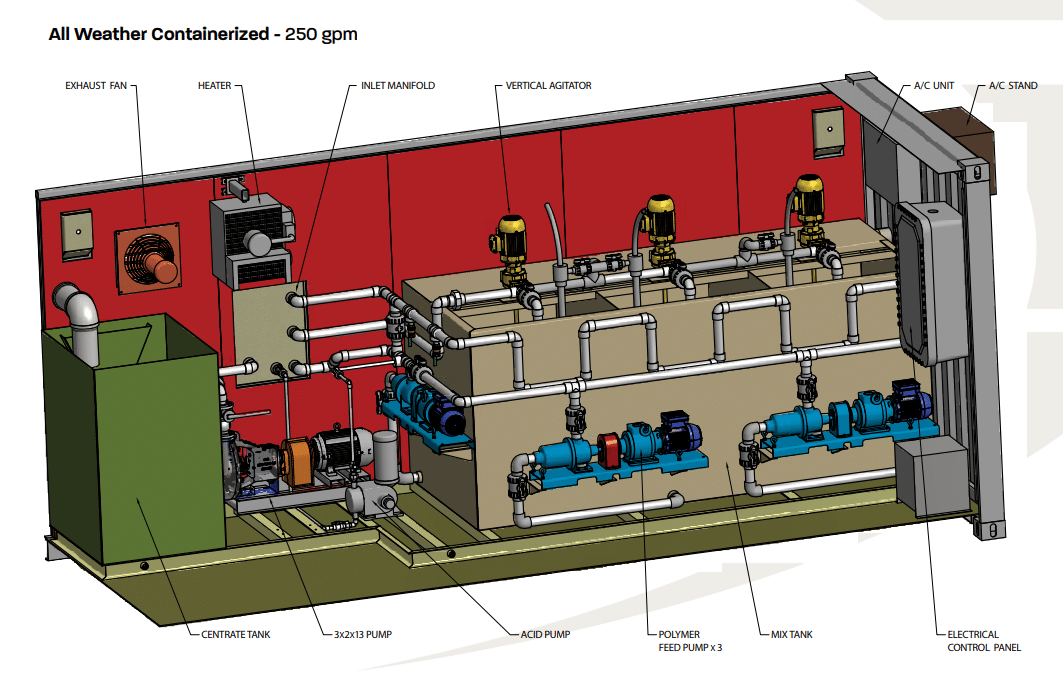

Each system is fully customized to your application, available in containerized all-weather enclosures or open-air configurations. All systems include:
- VFD (Variable Frequency Drive) control panel
- Mix tank and centrate tank
- Polymer feed pump system (3 pumps)
- Acid pump
- Inlet manifold with vertical agitator
- A/C and heating unit (containerized)
- Exhaust fan and electrical control panel

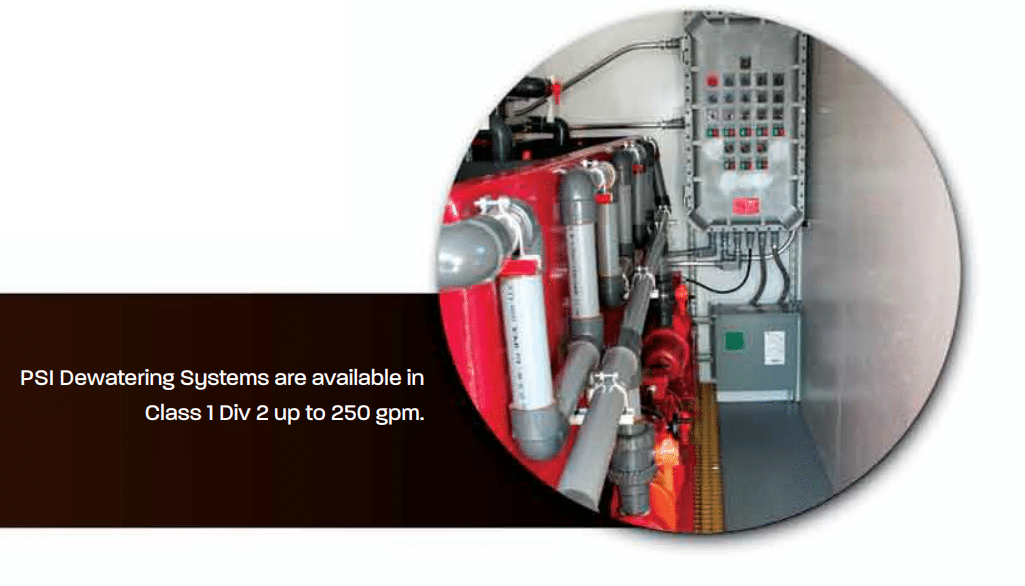

Available flow capacity: Up to 250 GPM
Certification: Class 1 Division 2
MAX2000® Bug Blaster
The Max2000 Bug Blaster circulates air to move insects and cool equipment, meeting OSHA standards for safety in hazardous areas. It features explosion-proof motors, customizable colors, and is designed for reliability and low maintenance.
MAX2000® Fuel Filtration
The PSI DF-25 Diesel Filtration Unit efficiently removes contaminants from diesel, ensuring clean fuel for reliable field operations. Contaminated diesel is a leading cause of oilfield equipment downtime, emphasizing the need for pure fuel.
Shaker Screen Cleaners
PSI’s shaker screen cleaners ensure thorough screen wash downs in an enclosed system, optimizing performance and safety. The Shaker Screen Cleaner provides effective cleaning, minimizes waste, and creates a clean work environment.
Brake Cooling Systems
Process Solutions International customizes each brake cooling unit to specific project criteria, incorporating advanced control components. The units feature a heat exchanger, redundant centrifugal pump, and are mounted on a robust I-Beam Framed skid for maximum structural integrity.
Dewatering Systems
PSI Dewatering Systems reclaim water or oil from drilling fluid waste, separating them from solids. This process reduces the need for onsite clean water and minimizes solid waste disposal.
Mining Dewatering Pumps
Mining operations, both surface and underground, generate continuous water management challenges. Open-pit mines accumulate groundwater that must be continuously removed to keep the working face accessible and safe. Underground mines face active inflow and require high-capacity dewatering systems that operate continuously.
PSI mining dewatering systems are sized and configured for these demands:
- High-capacity dewatering pump systems up to 250 GPM for large-volume pit dewatering
- Class 1 Div 2 certified equipment for use in mining environments with explosive gas risk
- Containerized units with full climate control for remote mine site deployment
- Compatible with PSI screw conveyor and material handling systems for integrated solids management
The chemical and mechanical separation process used in PSI dewatering systems is particularly effective in mining applications where water contains abrasive solids, fine particulates, and chemical contamination from blasting operations.
Oilfield & Drilling Fluid Dewatering
PSI’s dewatering systems were originally engineered for oilfield drilling fluid reclamation, a demanding application that requires processing large volumes of fluid containing drilling mud solids, cuttings, and chemical additives.
Applications by Industry
- Construction & Civil Infrastructure — excavation dewatering, trench drainage, tunneling water management, foundation work
- Oil & Gas Drilling — drilling fluid reclamation, mud waste processing, produced water handling
- Mining — open pit dewatering, underground mine inflow management, tailings water reclamation
- Water & Wastewater Treatment — sludge dewatering, effluent solids separation, remediation site water treatment
- Industrial Facilities — process water reclamation, plant wastewater treatment, spill containment
Get a Quote for Your Dewatering Application
PSI engineers custom dewatering solutions for construction, mining, and oilfield applications. Contact our Houston team to discuss your flow rate, fluid type, and site requirements.
Houston: (281) 893-4774
Email: info@psimax2000.com
Address: 7519 Prairie Oak Drive, Houston, TX 77086
FAQs
What is a dewatering system?
How much can a PSI dewatering system process?
What is the difference between a containerized and open-air dewatering unit?
What does Class 1 Division 2 mean on a dewatering system?
Can a dewatering system reclaim water from oilfield drilling fluid?
What is inside a PSI dewatering system?
What industries use industrial dewatering systems?
